OE-200-IN1-FC德国FEMTO可变增益光接收器快速光功率计Photoreceiver

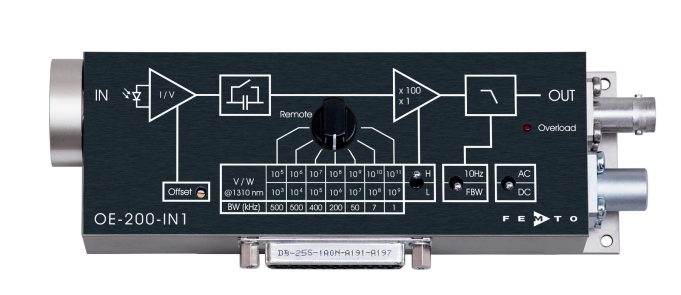

产品名称：德国FEMTO电流放大器OE-200-IN1-FC

产品型号：OE-200-IN1-FC

产品品牌：德国FEMTO

产品适用范围：科研和研发领域


产品简介：

Features：Conversion gain switchable from 1 x 103 to 1 x 1011V/W

InGaAs PIN detector

Spectral range 900 - 1700 nm

Calibrated at 1310 nm (fiber optic“-FC”± version only)

Bandwidth up to 500 kHz

Bandwidth up to 500 kHz

Applications：Fast fiber optic power meter

Spectroscopy

General purpose opto-electronic measurements

Optical receiver for use with lock-in amplifiers

Specifications：Test conditions VS = 15 V, TA = 25 ℃

Conversion gain：1x103 …1x1011 V/W(@1310nm)

Gain accuracy：±1% electrical,between settings

Conversion gain accuracy：OE-200-IN2-FS ±15% electro-optical

(POPT≤2 nW, @1550nm) ：OE-200-IN2-FC ±5% electro-optical(9/125 SM Fiber)

Gain drift：±0.1dbB

Frequency Response：Lower cut-off frequency DC / 1 Hz, switchable

Upper cut-off frequency up to 500 kHz (see table below), switchable to 10 Hz

Gain flatness 0.1 dB

Input：Noise equivalent power (NEP) see table below

Max. CW saturation power see table below

Offset current compensation 600 pA, adjustable by offset potentiometer or

400 pA, adjustable by external control voltage

Detector ：Detector InGaAs PIN photodiode

Active area 300 µm (free space “-FS”± version only)

Spectral response 900… 1700 nm

Sensitivity 0.87 A/W (@ 1310 nm)

Dark current 2 pA typ.

OE-200-IN2-FST ：  1.035"-40 threaded flange for free space applications and  for use with various types of optical standard accessories.
OE-200-IN2-FC ： FC fiber optic connector  (fix/permanent, FC/PC and FC/APC compatible).
OE-200-IN2-FST：1.035英寸-40螺纹法兰，适用于自由空间应用，并可与各种类型的光学标准配件配合使用。
OE-200-IN2-FC：FC光纤连接器（固定/永久，兼容FC/PC和FC/APC）。


远程控制输入位采用光电隔离，并通过逻辑“或”功能连接到本地开关设置。要进行远程控制，请将相应的本地开关设置为“远程”、“交流”和“H”（高速），并通过相应数字输入端的位代码选择所需的设置。
也可以进行混合操作，例如本地增益设置和远程控制交流/直流设置。
低通信号滤波器的开关设置“FBW / 10 Hz”不可远程控制。
